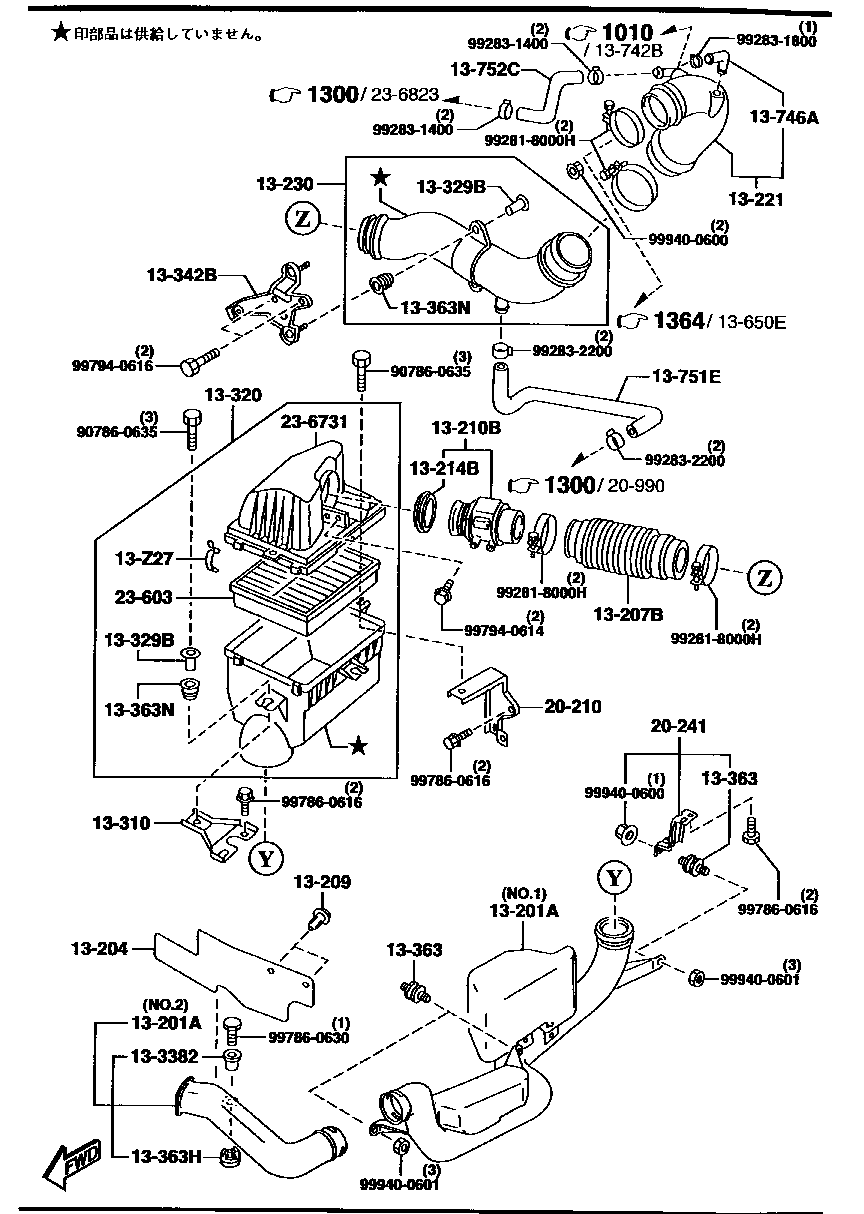

DUCT,FRESH AIR
WL0113200 | 13201A | DUCT,FRESH AIR | ???A NO.2 |
WL011320X | 13201A | DUCT,FRESH AIR | ???A NO.1 |
BAFFLE,AIR INTAKE
WL0113204A | 13204 | BAFFLE,AIR INTAKE |
HOSE,AIR
RIVET
SENSOR,AIR FLOW
B6BF13215 | 13210B | SENSOR,AIR FLOW |
GROMMET,AIRFLOW METER
B6BF13214 | 13214B | GROMMET,AIRFLOW METER |
HOSE,AIR
PIPE,AIR INTAKE
J50313230 | 13230 | PIPE,AIR INTAKE |
BRACKET,AIR CLEANER
WL0120200 | 13310 | BRACKET,AIR CLEANER |
CLEANER,AIR
J50313320 | 13320 | CLEANER,AIR |
SPACER
SPACER
BRACKET,AIR PIPE
J5031322Z | 13342B | BRACKET,AIR PIPE |
RUBBER,INSULATION
N23613363 | 13363 | RUBBER,INSULATION |
RUBBER,INSULATION
R20513363 | 13363H | RUBBER,INSULATION |
RUBBER,MOUNTING
FE5113363 | 13363N | RUBBER,MOUNTING |
PIPE,VENTILATION
JE4813746 | 13746A | PIPE,VENTILATION |
HOSE,AIR
J50313751A | 13751E | HOSE,AIR |
HOSE,AIR
CLIP
BRACKET,AIR CLEANER
WL0120210 | 20210 | BRACKET,AIR CLEANER |
BRACKET,FRESH AIR DUCT
WL0120240 | 20241 | BRACKET,FRESH AIR DUCT |
ELEMENT,AIR CLEANER
JE1513Z40 | 23603 | ELEMENT,AIR CLEANER |
COVER,AIR CLEANER
J50313Z01 | 236731 | COVER,AIR CLEANER |
SCREW & WASHER,TAPPING
907860635 | 90786 | SCREW & WASHER,TAPPING |
NUT,FLANGE
999400600 | 90906 | NUT,FLANGE |
999400601 | 90906 | NUT,FLANGE |
SCREW,TAPPING
997860616 | 99175 | SCREW,TAPPING |
997860630 | 99175 | SCREW,TAPPING |
CLAMP,HOSE
992818000H | 99281 | CLAMP,HOSE |
992831400 | 99281 | CLAMP,HOSE |
992831800 | 99281 | CLAMP,HOSE |
992832200 | 99281 | CLAMP,HOSE |
BOLT,FLANGE
997940614 | 99756 | BOLT,FLANGE |
997940616 | 99756 | BOLT,FLANGE |
|
|
